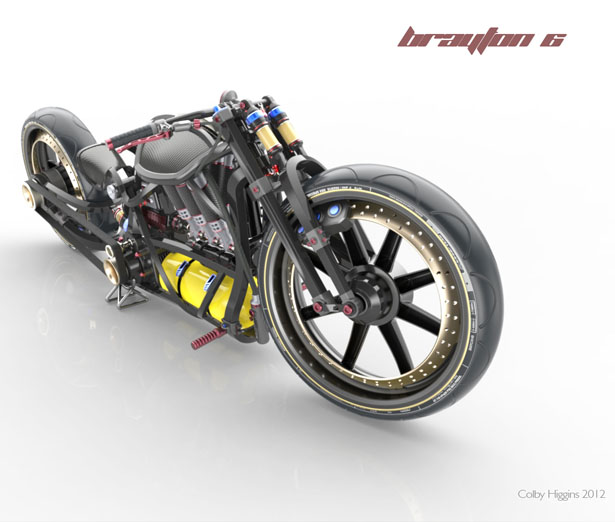

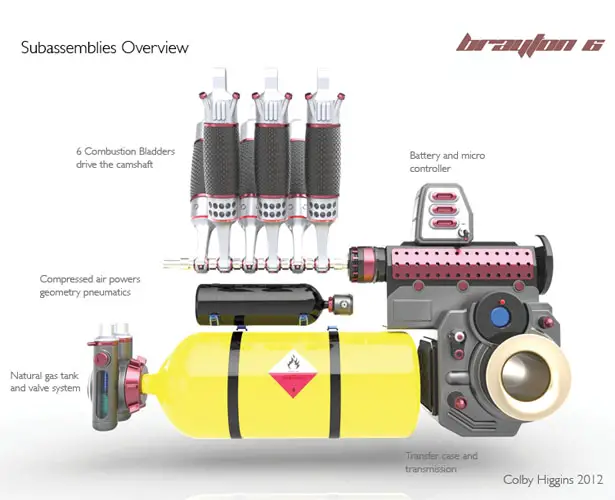

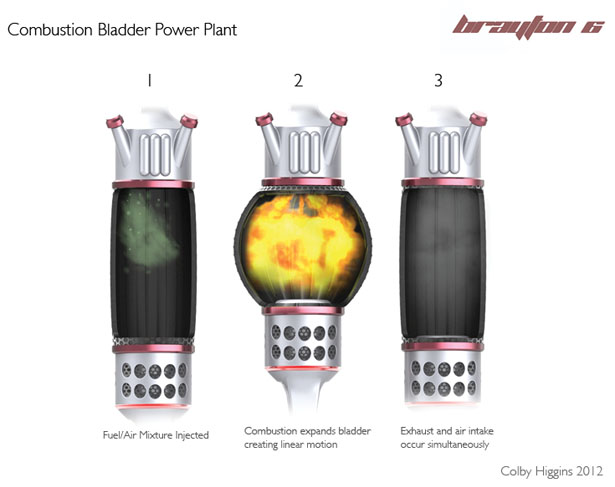

The Brayton 6 concept bike was designed from the inside out in order to create a true high-performance machine. Designed by Colby Higgins, the designer of Train Wreck Bike, you can expect this bike design is going to be extraordinary. The power-to-weight ratio was a critical influence on the design, as you probably can see here, with the purpose of creating an extremely light motorcycle, the bike was built around a combustion “bladder”. The engine bladders are lightweight carbon nanotube cylinders. Each one acts individually like a 2-stroke engine to pull the camshaft and create linear motion. Timing and fuel regulation are controlled by a microcontroller. So, the benefits of utilizing the combustion bladder engine include weight reduction and ease of maintenance. The engine itself is fueled by natural gas stored in the bottom tank.
Designer : Colby Higgins

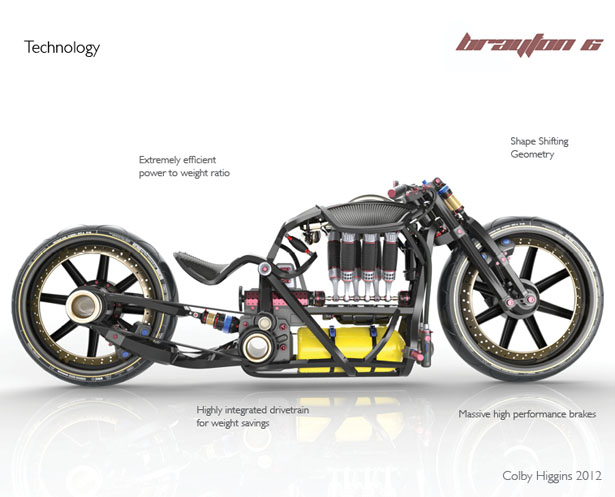

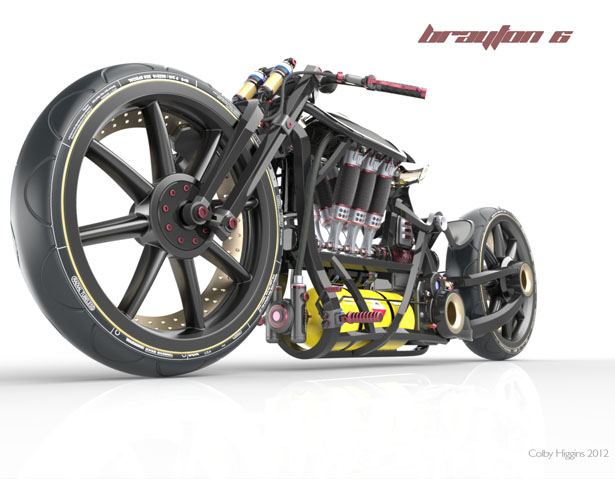

The overall form was an effort to inspire the animalistic feeling of a naked bike. The frame structure allows the rider to shift his riding position and ride height at the push of a button. Air-muscles provide fast and precise adjustment of the seat and front suspension parallelogram. The engine’s “bladders” sit in the center of the frame structure, braced by integral fairings that hold the spine of the frame together from the head-tube to the rear linkage. Massive brakes and oversized wheel bearings add the overall performance of the Brayton 6 Concept Bike.

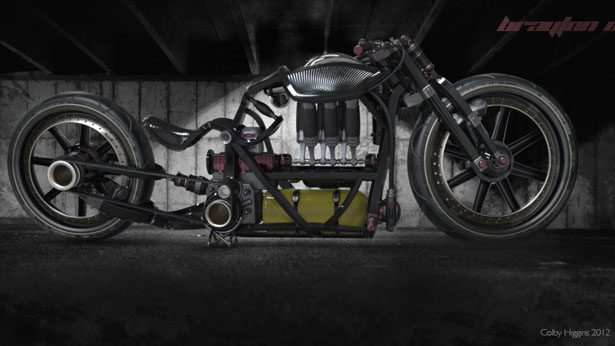

Both the form and function of the Brayton 6 Concept Bike is an attempt to create a feeling of being one with the bike. The low-slung seat places the rider low to the ground and sitting “in” the bike. The engine bladders beat like a heart, making the bike appear as though it is living with the rider. This combination of man and machine is designed to invoke a truly unique emotion.
Tuvie has received “Brayton 6 Concept Bike” project from our ‘Submit A Design‘ feature, where we welcome our readers to submit their design/concept for publication.
very nice again!
Any engineers out there think that this is possible?
The bladder idea is cute, but would be highly inefficient. A good portion of the combustion force is pushing directly opposite of the desired "linear motion" so the net output will be quite small (probably less than 10%).
