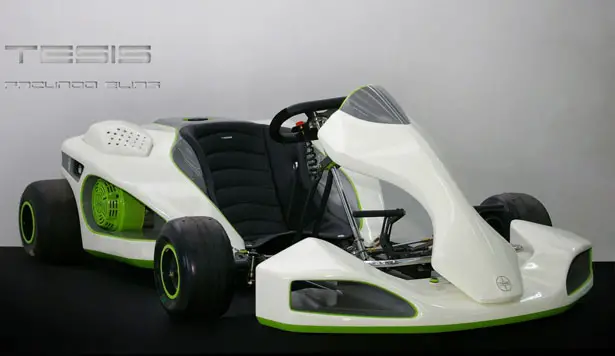

One-Person Hybrid Vehicle For Recreational Use by Facundo Elias

This futuristic vehicle is an excellent one-hybrid vehicle developed mainly to carry 2 different technologies including one for combustion and other one for an electric. In terms of the vehicle’s internal combustion engine, it features 160 cc 4-stroke, overhead valve, and a horsepower of 5.5hp at 3600rpm with centrifugal grip of Chinese origin and a 4 liter gas tank. With the electric motor operating at 48 volts with a torque of 30Nm and an efficiency of 69%, it requires nearly 6 hours of connection to 220 volts to be recharged. The vehicle features a range of 4 hours in continuous use while both the engines are running at the same moment.

This hybrid transportation has been constructed using alloy steel with no compromises to its original structure. To hide every functional component and safeguard the user from temperature materials and fluids, fairings were developed that envelops the cockpit and shields the user from side collisions that are absorbed by it. Well, the chair is made out of fiberglass and recycled leather, which helps prevent bruises over the lower back.

Designer : Facundo Elias

One Person Hybrid Vehicle For Recreational Use

One Person Hybrid Vehicle For Recreational Use

One Person Hybrid Vehicle For Recreational Use

One Person Hybrid Vehicle For Recreational Use

One Person Hybrid Vehicle For Recreational Use
