The Trailblazer, Mercedes Benz Bike

A new mountain bike is added by Mercedes Benz to its exclusive bike collection, called The Trailblazer. No need question about the materials, all is made with high-quality components and elegant design, perfect for serious off-road riding. The price tag is €2,790, really high in our opinion if you just use it for small ride in a park, but if you have so much money to spend, why not? The Trailblazer features a sophisticated four-link rear suspension that ensures outstanding riding comfort and excellent traction on difficult terrain. Mercedes Benz Trailblazer is available in two edition, sport edition and comfort edition, with a number of parts specially adapted to the different physiques of men and women.

mercedes benz trailblazer

mercedes benz trailblazer bicycle


Official Press Release :
With the uncompromisingly high quality of its equipment, its premium craftsmanship and its modern design, the new Mercedes-Benz mountain bike fulfils the high demands of experienced cycling enthusiasts. At its heart is an elegant and functional full-suspension frame with a sophisticated four-link rear suspension. The high-quality aluminium design was developed in collaboration with premium German cycle manufacturer ADP Engineering GmbH, a company renowned for its exclusive, handcrafted Rotwild brand of cycles, who have already proved themselves reliable partners of Mercedes-Benz with other bike designs.

The exclusive Mercedes-Benz Accessories GmbH range enables customers to further tailor their bikes to their own requirements. The collection contains everything from an electronic bike computer with twelve functions, a practical pannier with a capacity of seven litres and an ultra-light mini-tool for repairs on the road to a handy mini pump, a useful hydration rucksack and a first-aid kit.

trailblazer mercedes benz bike

mercedes benz bike

Technical data

Frame
Material: Aluminium 7005;
Colour: Sport Edition: anthracite
Comfort Edition: white with red and black elements
Size: Sport Edition: S (47); M (50); L (53)
Comfort Edition: S (45); M (48)

Rear-wheel suspension
Suspension/damping: Rock Shox Monarch 3.1 oil-air suspension strut adjustable rebound and compression stage
Travel: 120 mm

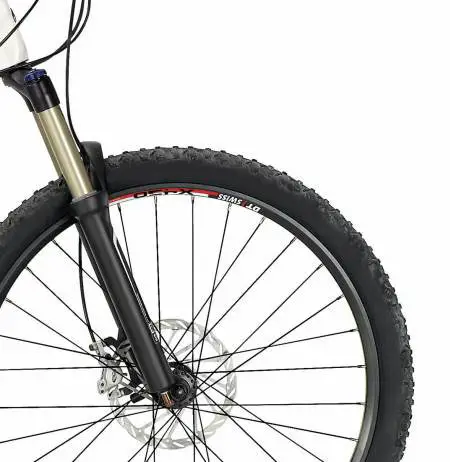

Front-wheel suspension
Fork: Rock Shox Recon 335 with aluminium crown
Suspension/damping: Solo Air/adjustable rebound stage,
Compression stage adjustable up to lockout
Travel: 120 mm

Drive system
Crankset: Truvativ Firex 3.3
Crank length: Sport Edition: S: 170 mm; M/L: 175 mm
Comfort Edition: S/M: 170 mm
Pedals: Wellgo, SPD compatible
Chainrings: Truvativ Alu 44-32-22T SRAM
Inner bearing: Truvativ Firex 3.3 BSA

Shifter
Cassette: Shimano HG 50; 11-32T; 9speed
Shift lever: SRAM X.7 Trigger
Front derailleur: SRAM X.9
Rear derailleur: SRAM X.9 long cage, 9speed

Brakes
System: Avid Juicy 5; 185 mm rotors front/rear

Wheels
Hubs front: H 220D
Hubs rear: H 400D
Spokes: DT Comp 2.0/1.8
Rims: DT SWISS X430 Disc 26″
Tyres: ContinentalMountainKing Falt; 26 x 2.20″

Removable parts
Stem: S 140
Sport Edition: S 75 mm; M 90 mm; L 115 mm
Comfort Edition: S 60 mm; M 75 mm
Handlebars: B 240
Sport Edition: 640 mm
Comfort Edition: 600 mm
Grips: Sport Edition: VeloLight
Comfort Edition: Ergon GP1
Saddle: Topeak Allay Racing
Saddle post: P 260; 31.6 x 350 mm

Weight
without attachments: approx. 13.5 kg

Designer : Mercedes Benz via BenzInsider
