The JS Bach Chamber Music Hall is a brilliant concept design installed at Manchester Art Gallery in order to house musical performances. The hall is built on a steel structure covered with a transparent fabric membrane suspended form the ceiling which divides and encloses the space aside from creating a stage, area for audience and passages for in and out of the hall. Above the stage, clear and acrylic panes are suspended, offering perfect disperse and reflect of sound. A massive ribbon swirls within the hall is carving out a visual and spatial response to the obscure relationships of Bach’s harmonies. Since the ribbon staggers above the performer and cascades into the ground along with wraps around the listeners, the original box shaped room is quite absent, rather, only fluid spaces are visible that are swelling, slipping and merging through one another. The design surely will enhance the diversity of Bach’s work via a coherent structural and formal logic integration.
From the website:
JS BACH / ZAHA HADID ARCHITECTS CHAMBER MUSIC HALL AT MANCHESTER ART GALLERY FOR MANCHESTER INTERNATIONAL FESTIVAL.Zaha Hadid Architects have created a unique chamber music hall specially designed to house solo performances of the exquisite music of Johann Sebastian Bach.

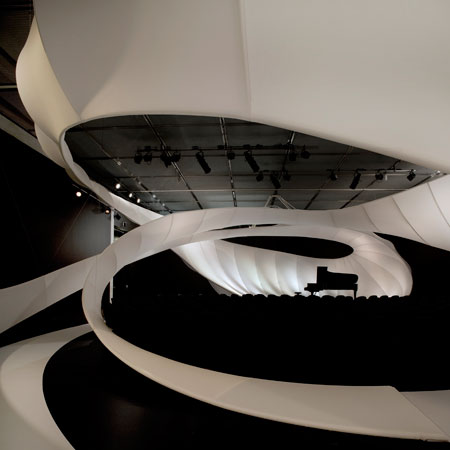

A voluminous ribbon swirls within the room, carving out a spatial and visual response to the intricate relationships of Bach’s harmonies. As the ribbon careens above the performer, cascades into the ground and wraps around the audience, the original room as a box is sculpted into fluid spaces swelling, merging, and slipping through one another.
“The design enhances the multiplicity of Bach’s work through a coherent integration of formal and structural logic. A single continuous ribbon of fabric swirls around itself, creating layered spaces to cocoon the performers and audience with in an intimate fluid space.” said Hadid.The process of realizing the design involved architectural considerations of scale, structure and acoustics to develop a dynamic formal dialogue inseparable from its intended purpose as an intimate chamber music hall.

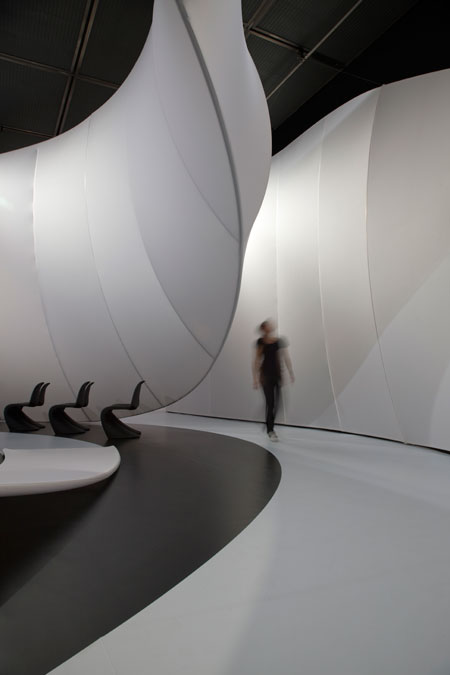

A layering of spaces and functions is achieved through the ribbon wrapping around itself, alternately compressing to the size of a handrail then stretching to enclose the full height of the room. Circulatory and visual connections are continually discovered as one passes through the multiple layers of space delineated by the ribbon.

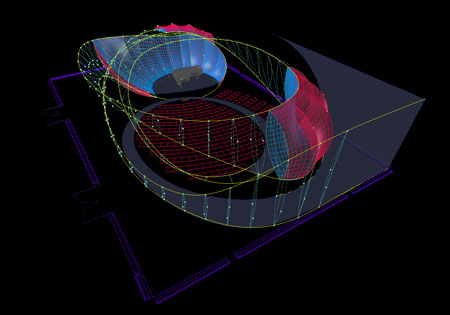

The ribbon itself consists of a translucent fabric membrane articulated by an internal steel structure suspended from the ceiling. The surface of the fabric shell undulates in a constant but changing rhythm as it is stretched over the internal structure.It varies between the highly tensioned skin on the exterior of the ribbon and the soft billowing effect of the same fabric on the interior of the ribbon. Clear acrylic acoustic panels are suspended above the stage to reflect and disperse the sound, while remaining visually imperceptible within the fabric membrane.
Programmed lighting and a series of dispersed musical recordings activate the spaces between the ribbon outside of performance times. The installation is designed to be transportable and re-installed in other similar venues.

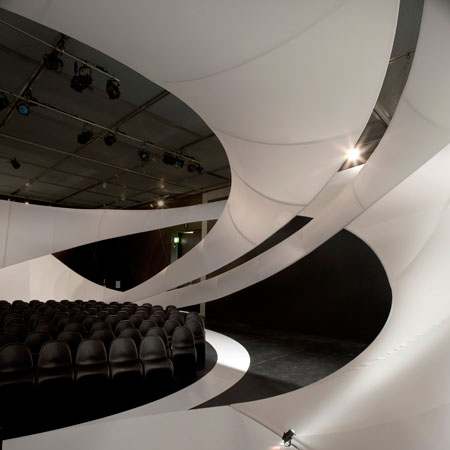

Pivotal to its function is the performance of the ribbon. It has been designed to simultaneously enhance the acoustic experience of the concert while spatially defining a stage, an intimate enclosure, and passageways. It exists at a scale in which it is perceived as both an object floating in a room as well as a temporal architecture that invites one to enter, inhabit and explore.
Designer : Zaha Hadid Architects via Dezeen
