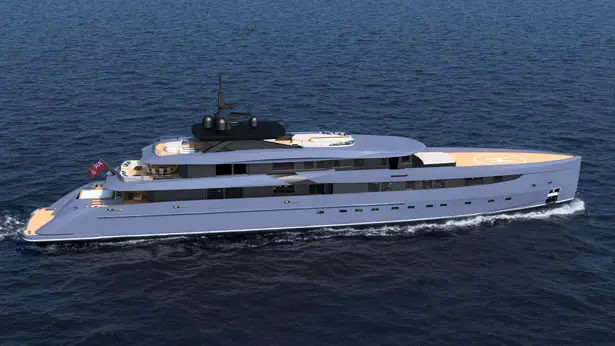

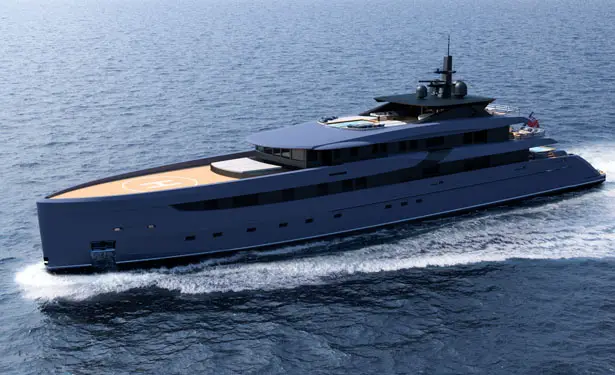

Submitted by Marco Ferrari, F65 is a concept yacht that features modern design with an extensive outside areas for incredible outdoor entertainment while enjoying awesome view of the ocean. You can read his complete explanation below.
This yacht can accommodate up to 12 guests across six custom-built cabins while the owner can sleep in a 90-square meter area located on the main deck, this includes a full beam master suit with double private balcony. The main room would also have a lounge area, a private studio, a dressing room, a double en suite with showers and bathtub.
A further VIP suite, guest cabin and twin cabin can be found on the main deck further aft, with an additional VIP suite on the upper deck, and an optional guest cabin on the lower deck, this space could be used as a second option, the guest cinema according to the owner’s requirement. All decks can be access by an elevator. The main salon is divided in a great lounge area with folding balconies to create a direct view of the sea and a dining area. Looking aft on the wide cockpit 3,5×3,3m, there’s an infinity pool surrounded by sofas, a perfect space for entertainment and lounging.
Designer : Marco Ferrari
The beach club includes a lounge area with a bar, it is located in the aft part of the lower deck, connected to the wide stern platform. This is a comfortable space for guests with easy access to the water, while forward is connected to the tender garage that houses a 9m guest tender and a 7m rescue tender, plus four jet skis, and diving equipment. The lower deck of F65 Yacht hosts crew area forward with galley, crew mess, crew lounge, crew gym, two single cabins, six double cabins, and a hospital cabin, this area is connected directly with the engine room. The under, lower deck hosts additional areas for the crew. The captain cabin is located on the upper deck.

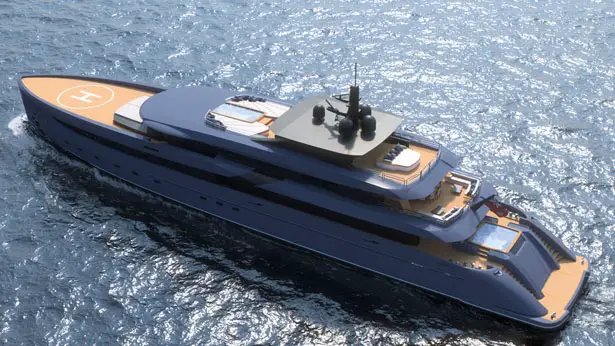

The upper deck has an incredible amount of exterior space: astern an exterior dining table allows guests to enjoy the sea together with a lounge area; forward we can find a fixed sunbed and a touch-and-go helipad that can be used as a terrace with sunbeds when not in use. The sundeck is 22 meters long and has an enclosed area with gym and massage room, astern a great comfortable sunbed is located to relax and enjoy the view, forward a bar and lounge area complete the entertainment space with wide sunbeds and a 5×2,5 m infinity pool. The F65 Concept Yacht is capable of a cruising speed of 15 knots but alternative main engines can be chosen to reach a faster speed.
L.O.A.: 65,6 m (215,2 ft)
B.max: 11,5 m (37,7 ft)
Draught: 3,1 m (10,2 ft)
International Gross Tonnage: abt.1300
GT Max speed: 16,5 kn
Cruising speed: 15 kn
Range at 12 knots: 5.500 NM
Fresh water capacity: 30.000L
Main Engines: 2x Caterpillar 3512C
Max Power: 2x 1500 kW at 1600RPM
Propellers: five blades fixed pitch 0 2.000 mm
Main generators: 3x Caterpillar 150 kW
Bowthruster: 150 kW
Stabilizers: 2x 6 sq.m. – zero speed capacity
Hull material: Steel
Superstructure material: Aluminium
Crew: 18 + Captain
